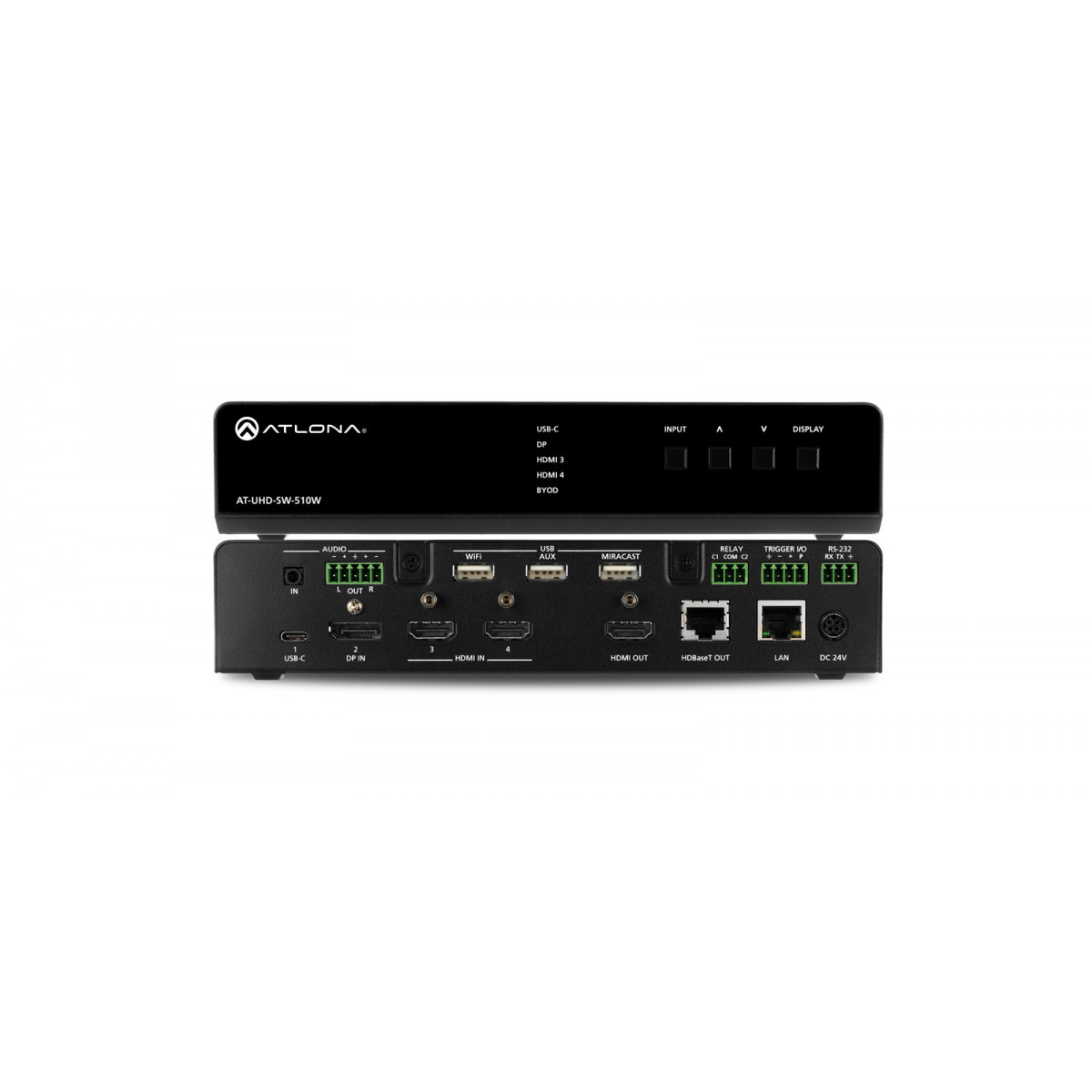

The Atlona AT-UHD-SW-510W is a 5×1 multi-format switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W is HDCP 2.2 compliant, and features an HDMI output and a mirrored HDBaseT output that can be used with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections. This unique multi-format switcher and wireless gateway provides a universal connectivity solution for presentation devices in a wide range of professional AV applications.

The Atlona AT-UHD-EX-100CE-RX is a 4K/UHD HDMI over 100M HDBaseT receiver for AV signals up to 330 feet (100 meters) over category cable with Ethernet pass through, RS-232 and IR control, plus Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The AT-UHD-EX-100CE-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

Atlona SW-510W Features:

• Two HDMI®, one DisplayPort, and one USB-C input, plus an input for wireless AV
• Mirrored HDBaseT™ and HDMI outputs
• Wireless AV gateway for iOS®, Android™, Mac®, Chromebook™, and Windows® devices
• 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling, plus support for 4K/60 4:4:4 and HDR formats on local ports (HDMI, USB-C, and DisplayPort)
• HDCP 2.2 compliant
• Automatic input selection and automatic display control
• USB-C port supports device charging for laptops, tablets, and smartphones
